3D Offset Profiling, 3 Axis

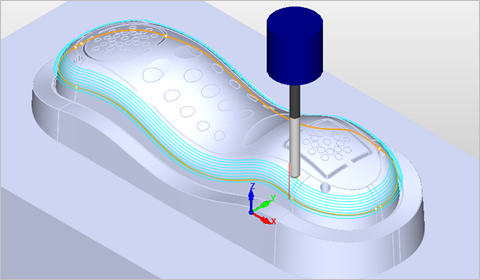

The 3D Offset Profiling operation is suitable for machining isolated areas or shapes, this method machines along a curve. You must specify a curve as machining region, direction and cut pattern. The tool simultaneously follows the region and the contours of the part below in constant 3D.
See also: What Tool Types are Supported by this Operation?
 3D Offset Profiling, 3 Axis |

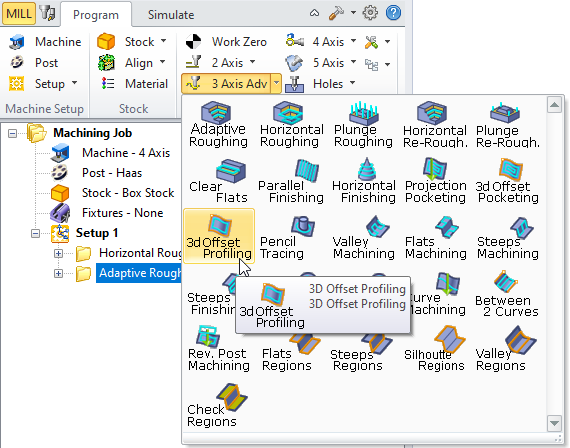

The 3D Offset Profiling toolpath method is invoked by selecting the Program tab, clicking on the 3 Axis Adv button in the Machining Browser and selecting the 3D Offset Profiling Operation.  3D Offset Profiling, 3 Axis Menu Item |
The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 3D Offset Profiling, 3 Axis |
