The Data Tree

The upper portion of the RhinoCAM-MESH Browser contains the Data Tree. Your RhinoCAM-MESH data objects are listed here.  You can select from these objects anytime a RhinoCAM-MESH command asks for a selection to be made.



tog_minusThe RhinoCAM Browser consists of the following:

1.The Ribbon Bar

2.The Data Tree

3.The Toolbar

4.The Information Window

5.The Dialog Window

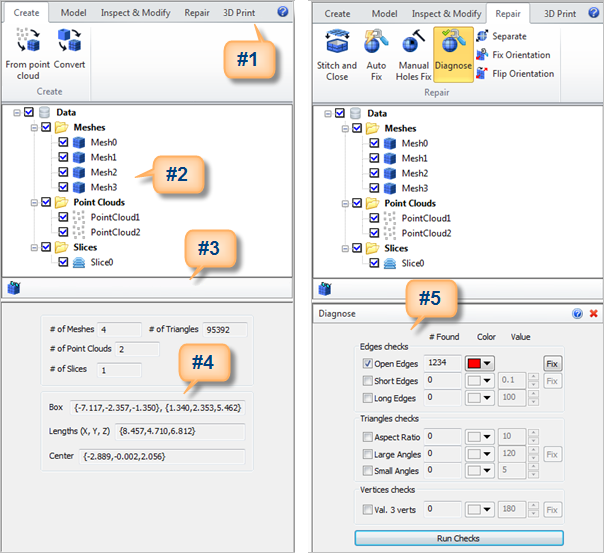

RhinoCAM Browser: (1) Ribbon Bar (2) Data Tree, (3) Toolbar (4) Information Window, (5) Dialog Window

RhinoCAM Browser: (1) Ribbon Bar (2) Data Tree, (3) Toolbar (4) Information Window, (5) Dialog Window
