Z Containment Tab, 3 Axis

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Creating 3 Axis Operations > Parallel Finishing >

Z Containment Tab, 3 Axis

The following Z Containment tab for the 3 Axis operations listed below, allows you to contain the toolpath in Z level by specifying High Z and Low Z values either by inputting the values or by picking the Z height from the 3D model.  Refer to each option below.  Some or all of these parameters are supported by the following operations listed below.



tog_minusSimilar for the following 3 Axis Operations

Parallel Finishing, 3 Axis

Radial Machining, 3 Axis

Spiral Machining, 3 Axis

Projection Pocketing, 3 Axis

Steeps (Parallel Hill) Machining, 3 Axis
tog_minusDialog Box: Z Containment tab

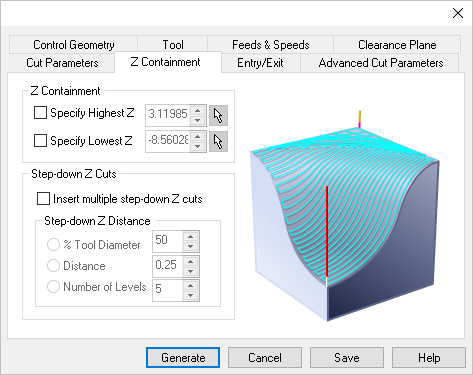

Dialog Box: Z Containment tab, 3 Axis Operations

Dialog Box: Z Containment tab, 3 Axis Operations
tog_minusZ Containment

Specifying a Z level containment limits the toolpath to high z or low Z values.

PickCheck the appropriate box for Specify Highest Z or Specify Lowest Z and then enter Z values or use the Pick button to select a point on the model whose Z value to use.  If the Z level containment is not defined, the toolpath takes the models Z height into consideration.

Specifying Highest Z

Specifying Highest Z
Specifying Lowest Z

Specifying Lowest Z
Highest and Lowest Z

Highest and Lowest Z
tog_minusStep-down Z Cuts (not available for all operations)

You can also check the box to Insert multiple step-downs in Z cuts for the operation. The step down Z distance can be specified as a % Tool Diameter, a Distance or as the Number of Levels.

Without Multiple Step-down

Without Multiple Step-down
With Multiple Step-down

With Multiple Step-down
