The following dialog allows you to select the appropriate tool (Standard Drill, Center Drill or Reamer) for the Turn Drill operation. The Tools in Session are listed on the left. Expanding the Tool tree will list the current operations assigned to that tool. The geometry parameters of the selected tool are displayed to the right. See Create Edit Tools for more information.

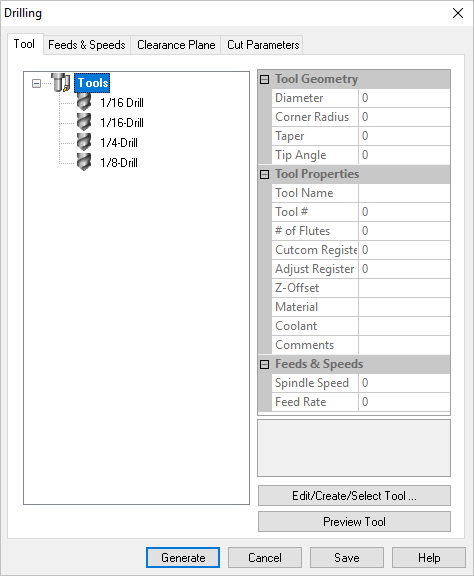

 Dialog Box: Tool tab, Turn Drilling |
If there are no Tools listed, select this button to Create a new tool. If a tool is listed and selected by default, select this button to Edit the parameters for that tool or to Select a different tool for the current operation. |
