The following dialog allows you to select the appropriate Groove insert tool for the Turn Groove Roughing operation. The Tools in Session are listed on the left. Expanding the Tool tree will list the current operations assigned to that tool. The geometry parameters of the selected tool are displayed to the right. See Create Edit Tools for more information.

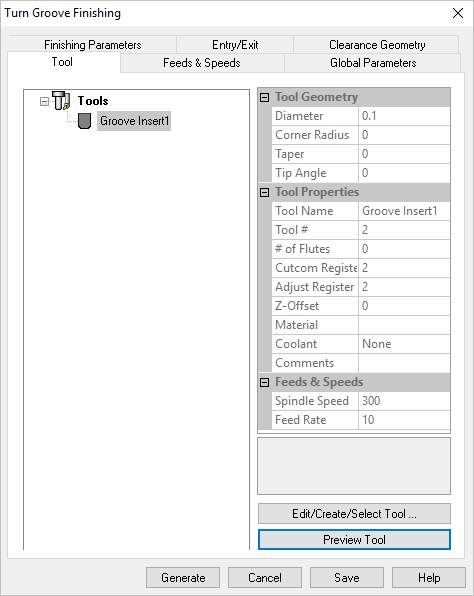

 Dialog Box: Tool tab, Turn Groove Finishing |
If there are no Tools listed, select this button to Create a new tool. If a tool is listed and selected by default, select this button to Edit the parameters for that tool or to Select a different tool for the current operation.
|
Preview Tool - Select this button to display a graphical representation of the currently selected tool. This is the same Preview of the tool that you see displayed in the Edit/Create/Select Tool dialog.
|
