The Dialog Window

When a VisualCAM-MESH command icon is selected, the lower Information Window of the VisualCAM-MESH Browser changes to a Dialog Window with parameters and options specific to that command.



tog_minusThe VisualCAM Browser consists of the following:

1.The Ribbon Bar

2.The Data Tree

3.The Toolbar

4.The Information Window

5.The Dialog Window

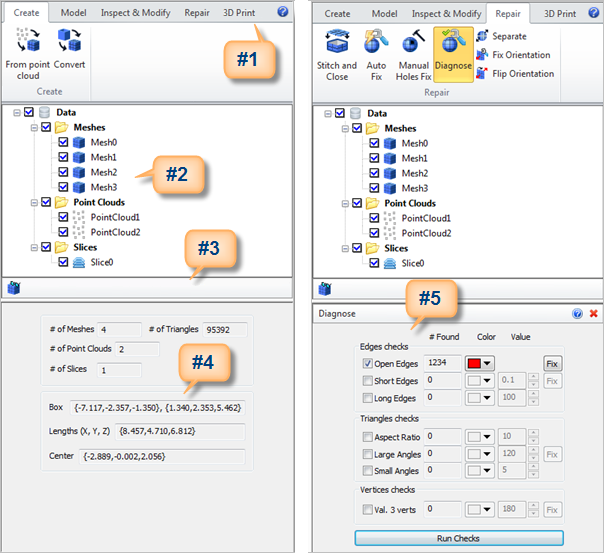

VisualCAM Browser: (1) Ribbon Bar (2) Data Tree, (3) Toolbar (4) Information Window, (5) Dialog Window

VisualCAM Browser: (1) Ribbon Bar (2) Data Tree, (3) Toolbar (4) Information Window, (5) Dialog Window
