Reverse Post Parameters tab, Reverse Post Machining, 3 Axis

The following Cut Parameters tab allows you to define the cut parameters for the current 3 Axis Reverse Post Machining operation.  You can set Global Parameters, and specify the posted Toolpath File via this tab of the operation dialog.  The Global Parameters section allows you to set the tolerance value to be used in machining.  A uniform thickness or stock that needs to be left around the part can also be specified here.  Refer to each option below.



tog_minusDialog Box: Reverse Post Parameters tab

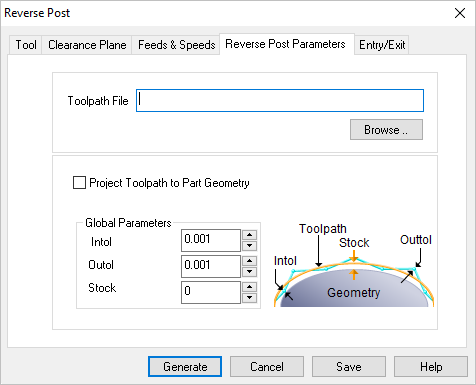

Dialog Box: Reverse Post Parameters tab, Reverse Post Machining, 3 Axis

Dialog Box: Reverse Post Parameters tab, Reverse Post Machining, 3 Axis
tog_minusToolpath File

You can load a toolpath file using the edit field in the top of this dialog. Use the Browse button to locate the file. Two types of files can be reverse posted.

•APT CL - One is standard APT CL text files. These files should have a .cls or .apt extension on them.

•ISO - The other type is ISO standard G Code file. This file can have any extension other than the ones used for APT CL files.
tog_minusProject Toolpath to Part Geometry

Check this box to have the toolpath projected onto the part geometry.
tog_minusGlobal Parameters
Global Parameters, 3 Axis Operations

Global Parameters, 3 Axis Operations

The Global Parameters section allows you to set the tolerance value to be used in machining. Intol and Outol are allowable deviations (tolerances) from the actual part geometry plus the Stock layer (if any).  A uniform thickness or stock that needs to be left around the part can be specified here.

Intol / Outol
Inward tolerance - the maximum thickness of material that can be removed from the Stock layer.  Outward tolerance is the maximum thickness of material that can remain above the Stock layer.



How to Increase Tool Path AccuracyTolerances play a vital role in both design engineering and digital manufacturing.  In design, the goal is to allow the broadest tolerance range possible while meeting your design specifications. This is because, generally speaking, there is a direct correlation between tighter tolerances and higher manufacturing costs.

Read the full article...

Stock
The thickness of the layer that will remain on top of the part after the toolpath is complete. Roughing operations generally leave a thin layer of stock, but for finishing operations this value is zero.
