Selecting Execute Nest from Choose Nesting Parameters tab automatically displays the resulting nest and switches to the Preview Nest tab. Select from the list of nested sheets to display that sheet. Any parts that were not nested are also listed here.

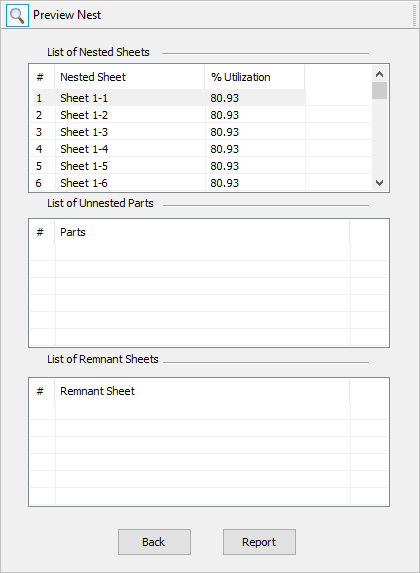

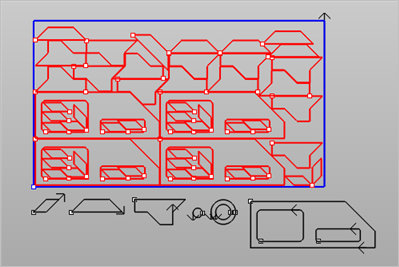

 Execute Nest Results  Preview Nest Example |
 | List of Nested Sheets |
True Shape Nesting - % Utilization This is an efficiency calculation showing how much of the sheet area was used for true part area production. Rectangular Nesting - % Utilization This is calculated using the rectangular areas around each part, rather than the true shape of the part. This will not represent a true efficiency comparison between true part area and sheet area. The non-utilized remainder of the sheet area would be remnant and/or scrap. |
| List of Unnested Parts |
If for any reason a part could not be nested in any sheet, it will be listed here. |
| List of Remnant Sheets |
This list will include all Remnant Sheets if any, calculated using the Remnant Controls from the Choose Nesting Parameters tab. |
Returns you to the Choose Nesting Parameters tab. |

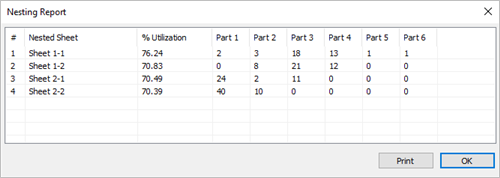

Displays a nesting report in a separate dialog.  Nesting Report |
