Part Units

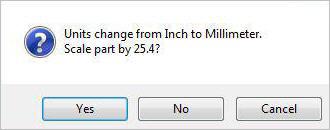

Part UnitsDisplays the current model units.  If it is picked, it will attempt to change units from inches to millimeters or from millimeter to inches.  If objects are already in the model, a dialog will verify if you really want to change units.  The objects keep the same size but their measured dimensions change.
