Finishing Parameters Tab, Turn Groove Finishing

<< Click to Display Table of Contents >>

Navigation:  TURN Module > Creating Turning Operations > Groove Finishing >

Finishing Parameters Tab, Turn Groove Finishing

In this tab, parameters like the Cut Direction, Step Over and Step Down can be specified for Turn Groove Roughing operations.



tog_minusDialog Box: Finishing Parameters tab

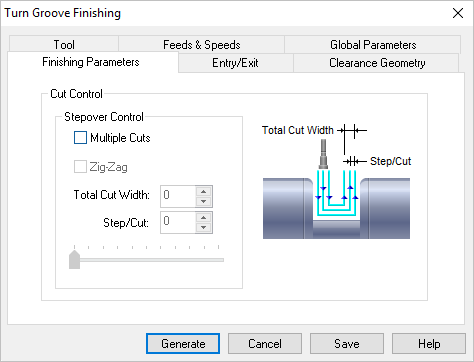

Dialog Box: Finishing Parameters tab, Turn Groove Finishing

Dialog Box: Finishing Parameters tab, Turn Groove Finishing
tog_minusCut Control

Groove finishing cut can be specified in terms of the total passes of the cutter over the stock.

Stepover Control - Allows specifying multiple passes for groove finishing. Selecting multiple cuts allows user to set the total cut width and step per cut.  The direction of cut can be either unidirectional or Bi-directional (Zig-Zag) with Multiple Cuts supported.
