Create an Ellipse by defining a focal point about which the ellipse is positioned. The first two points define the ellipse major axis and are the focal points about which the ellipse is located. The minor axis of the ellipse passes through a third point defining the minor axis. Refer to the steps below.

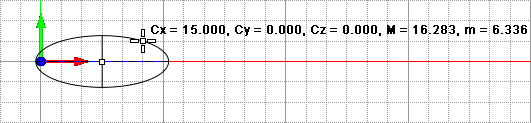

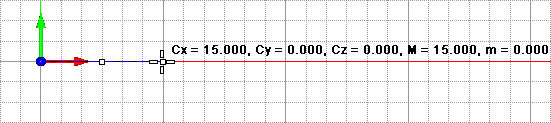

Ellipse:: Pick first foci point or enter coordinates x,y and z Ellipse:: Pick second foci point or enter coordinates x,y and z Ellipse:: Pick point or enter coordinates x,y and z |
|
