Cornering Parameters

<< Click to Display Table of Contents >>

Navigation:  Profile-NEST Module > 2 Axis Profiling >

Cornering Parameters

The following Cornering Parameters are available for all Profiling operations.  You can control both External Corners and Interior Corners.  You can also filter which corners these controls are applied to by specifying a corner angle range.  Please be sure to read the notes below before using these parameters and perform cut material simulations to fully understand how they affect cutter movement.

Hint!Important Note:  These Internal and External Corner Types require that the Control Geometry selected for the Profiling operation be closed regions or open poly-lines.  If your Control Geometry is a single line or multiple disconnected lines, you must use the Default selections or an error message will be returned.

Hint!You can use these parameters even if the controller does not support arcs. In this case, make sure that the output is set to Linear output. This can be set in the Set Machining Preferences dialog located on the Machining Browser under CAM Preferences.

Hint!Tip: Location of Start Points:  If the start point is at a vertex where the corner is being applied, it is automatically moved to the corner.

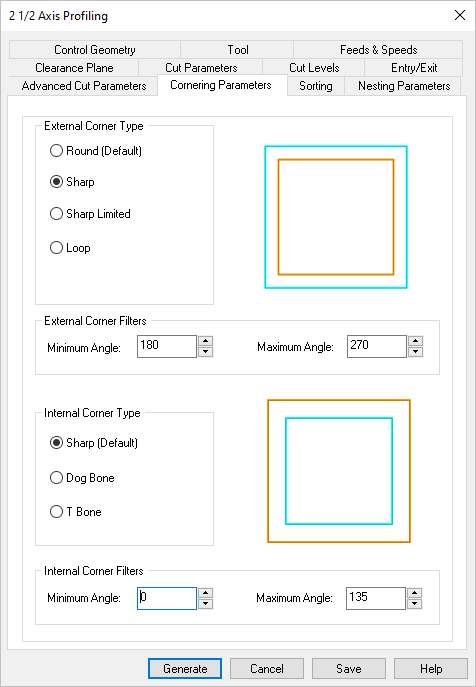

tog_minusDialog Box: Cornering Parameters tab
tog_minusExternal Corner Type
tog_minusExternal Corner Filters
tog_minusInternal Corner Type
tog_minusInternal Corner Filters
