Curve Projection Machining, 5 Axis
This method is typically used for trimming blow molds and sheet metal dies. Here you select one or more drive curves to control the initial cutter locations. These curves will be projected onto the Drive surfaces and the tool axis is derived from the projection points on the drive surfaces. The tool positions will then be modified according to gouge checking on the part surfaces.
See also: What Tool Types are Supported by this Operation?

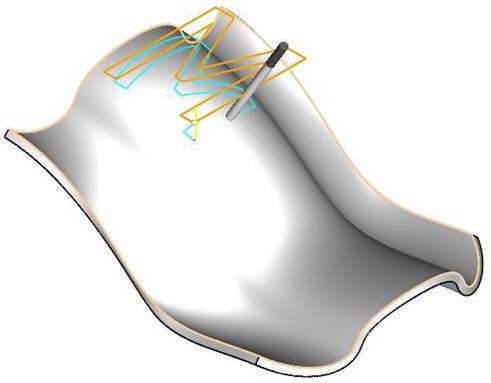

 Curve Projection Machining, 5 Axis Example |

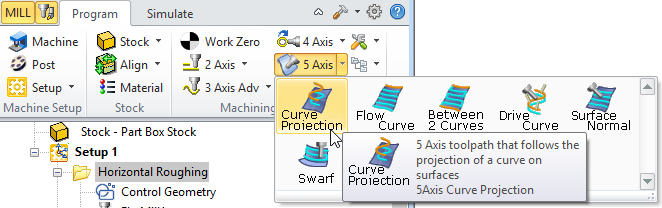

The 5 Axis Curve Projection Machining operation is invoked by selecting the Program tab, clicking on the 5 Axis button in the Machining Browser and selecting the Curve Projection Operation.  Curve Projection Machining, 5 Axis Menu Item - Premium Configuration Shown |
The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: Curve Projection Machining, 5 Axis |
