User Interface

The RhinoCAM MILL module adheres to the Windows standard for user interface design and integrated into the Rhino screen seamlessly.



tog_minusMILL Module Displayed

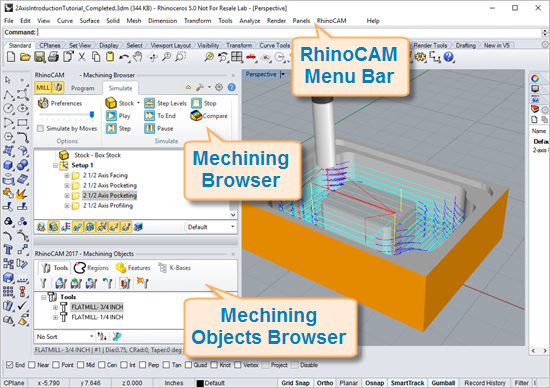

A screen shot of the RhinoCAM MILL module running inside of Rhino is shown below:

The MILL module running inside of Rhino

The MILL module running inside of Rhino
tog_minusThe RhinoCAM MILL Interface

There are 3 main interface objects created when MILL module is loaded.

1.RhinoCAM menu bar entry under Rhino menu bar

2.Machining Browser (Mops) window

3.Machining Objects (Mobs)  Browser window
