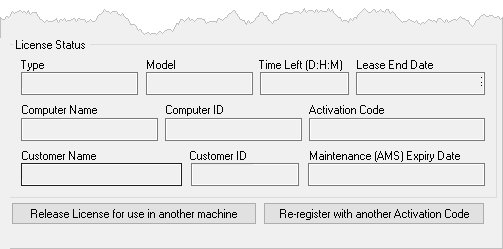

License Dialog (Node Locked License)

Type

This refers to kind of license you have. This could be Demo License, Timed License or Perpetual License. The License Type will appear as Timed License if your license allows you to run the product for a certain number of days as defined by your license grant.  If your license grant allows you to run the product in perpetuity the License Type will appear as Perpetual License.

If you have not acquired a license for the product or if you run out of days left on your timed license grant the License Type will appear as Demo License.  If this happens, the software will switch to operating in demo mode.

Model

This tells you the license model you are currently running.  Please refer to our product activation and licensing guides that we make available to all users.

Cloud

This license has a lease time of 8 hours. If the license has not been in use for 8 hours then it becomes available for use on other machines. This license needs public internet access for activation and periodic renewal of the license lease. This is the default license model all users will be supplied with.

Network Locked

This license is a multiple floating license that is locked to a network. Like the Floating license above it also needs public internet access for activation and periodic renewal of the license lease. The advantage of this license is that clients can be locked to a network thereby preventing inadvertent removal or theft of license(s).

Network

This license uses a LAN Daemon built on top of CentOS 7.0 for serving licenses inside of a host network. This license is used only for completely dark sites such as military and highly sensitive sites. It is not normally available for commercial or educational institutions.

Time Left

This field indicates the number of days you can run the software before it starts operating in demo mode.  To register the product you will need to request an Activation Code (see above).  The Activation Code is unique to each product and machine.

Lease Left

This field indicates the number of days left in your annual lease, that you can run the software before it starts operating in demo mode.  To extend your lease contact sales@mecsoft.com BEFORE your lease runs out.

Computer Name / Computer ID

The Computer Name and Computer ID is generated automatically.

Customer Name / Customer ID
The Customer Name is supplied when you register the product.  The Customer ID is generated automatically and is the last set of characters in your activation code. IMPORTANT: To help expedite any requests for technical support ALWAYS have your Customer ID handy.  You will be asked to supply it when leaving voice messages and emails.

Activation Code

The Activation Code will display the code provided to you by MecSoft Licensing.

Annual Maintenance Service (AMS) Expiry Date

This will alert you to when your annual maintenance service (AMS) will expire.  Keep your AMS current to enjoy expedited support, bonus CAM modules, CAMJam self training videos and exclusive AMS training publications and webinars!
