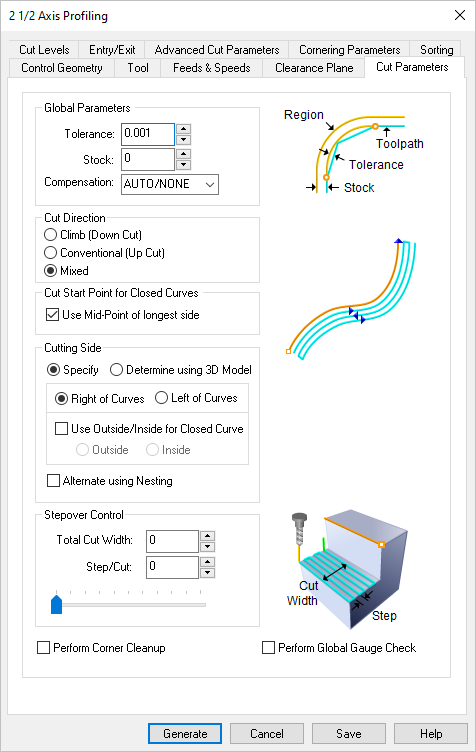

The Global Parameters section allows you to set the tolerance value to be used in machining. A uniform thickness or stock that needs to be left around the part can be specified here.

Tolerance

This is the allowable deviation from the actual part geometry plus the Stock allowance (if any).  In 2 Axis methods, this Tolerance is applied to XY motions only.

Tolerance

How to Increase Tool Path Accuracy

Stock

This is the thickness of the layer that will remain on top of the part after the toolpath is complete. Roughing operations generally leave a thin layer of stock.  For finishing operations this value is zero.

Stock

Compensation

This enables cutter compensation.  The compensation direction, left or right, is determined by the Cut Direction selected (Climb or Conventional).

Climb (Down Cut)

Select Climb (Down Cut) and the tool will be maintained in a downward motion into the stock.

Climb (Down Cut)

Conventional (Up Cut)

Select Conventional (Up Cut) and the direction of the tool will be maintained in an upward motion out of the stock.

Conventional (Up Cut)

Mixed

Select Mixed and the direction of cutting is alternated between each parallel plane.  This is a mixture of both Climb and Conventional cutting of the stock.

Mixed

Understanding Climb vs Conventional Milling One of the basic concepts to understand in any milling operation is Cut Direction.  It can be characterized by how the flutes of the cutting tool engage the stock material and form the chip that is removed during cutting. In many of MecSoft CAM’s 2½ & 3 Axis toolpath strategies you will see that Cut Direction is defined by selecting one of three options, Climb, Conventional or Mixed.  Let’s take a look at the characteristics of each option. Read the full article...

For Z Level Cuts

When Mixed is selected, zigzag motions are applied between step downs to eliminate tool retracts between z levels.  If Climb or Conventional is selected, retract between z levels are applied.  Refer to the images below:

Climb or Conventional

Mixed

Check this box to move the cut start point to the mid-point of the longest side of a closed curve.

Use Midpoint of Longest Curve

Specify

Use this option to specify that cutting side.  Choose Right of Curves or Left of Curves (see below)

This determines the side of the curve to be cut.

Right / Left
This can be set for both open and closed curves.  For example, for a clockwise arc/circle, the right side would be inside the arc/circle and the left side would be outside the arc/circle.

Cut Start Side – Right

Cut Start Side – Left

Use Outside or Inside for Closed Curves
For closed curves, you can set the Cut Start Side by selecting Use Outside or Inside for Closed Curves and select Outside or Inside.

Determine using the 3D model
If a 3D model is being used, check this box to automatically determine the Start Side.  This option may not be available for all 2½ Axis operations.

Note: This feature is not available in Xpress configuration.

Alternate Using Nesting

If your control geometry has nested curves, check this box to alternate the cut side (i.e., Outside/Inside or Inside/Outside). You can use the Sort Parameters tab to sort clustered profiles.

On

Off

This is how wide your cut should be.  The Step/Cut determines your stepover.  For example if Total Cut Width is set to 1.0 and Step/Cut is set to 0.25, there will be 4 passes created.

Total Cut Width

This will determine the stepover for each cutting pass beginning at your total cut width and ending at your control geometry.

Total Cut Width

Checking the Corner Cleanup box will cause automatic detection of all the corners that the tool could not reach between each pass. It will then add a toolpath based on the uncut area detected; either a linear cut in case of smaller areas or a cut that travels along the shape of the uncut area, when the area is large.

With this parameter checked, the cutter will not violate any of the selected control geometry. This option only works with closed curves as shown in the illustration below.

Gauge Check ON

Gauge Check OFF
